State of the art system for topographic electrical characterization of multicrystalline bricks in fabs with high throughput. Total measurement times of less than one minute at 1 mm resolution for one face of the brick. Bricks are automatically turned around to facilitate measurements of all 4 sides of each brick.

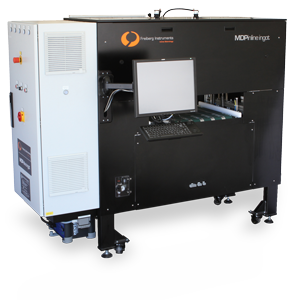

MDPinline ingot systems are worldwide the fastest measurement tools available for electrical characterization of multicrystalline silicon bricks. They are designed for single brick investigation in high throughput production fabs. Every brick can be measured on four sides in less than one minute per face. All maps (lifetime, photoconductivity, resistivity) are measured simultaneously.
The system includes a database and statistical data evaluation, which can be used for automated determination of precise cut positions for yield improvement, for material quality monitoring, for furnace selection and process improvement.
contactless destruction free electrical semiconductor characterization
mapping capability of minority carrier lifetime
advanced sensitivity for visualization of so far invisible defects
automated cut criteria definition
steady state measurements for extraction of bulk properties
completely automated for inline integration
2-dimensional brick mapping system for solar grade silicon, one millimetre resolution, measurement time: one face of a brick in less than 1 minutes, automated measurement of all 4 faces
World record speed for inline multicrystalline silicon brick characterization for advanced PV fabs. Measurement of carrier lifetime with one millimeter resolution in less than one minute for one face of a brick. Spatial resolved measurement of conduction type changes as well as resistivity maps are measured at the same time.
Customer defined brick cut criteria can be transmitted to the fab database, which allows a fully automated material monitoring for next generation photovoltaic fabs. Enables material quality control and monitoring of furnace performance, and failure analysis.
Special “underneath the surface” measurement technique reduces distortion of data by surface recombination considerably.
fully automated

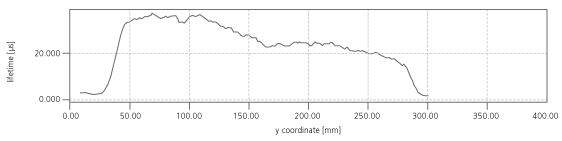

ingot maps and linescans
resistivity map with 1 cm² resolution
p/n equivalent map with 1 mm² resolution
iron mapping capability
µPCD/MDP (QSS)
