3D Mapping of crystalline turbine blades

The high temperature creep resistance of turbine blades made from single crystal NI-superalloys depends on the deviation from the target orientation*.

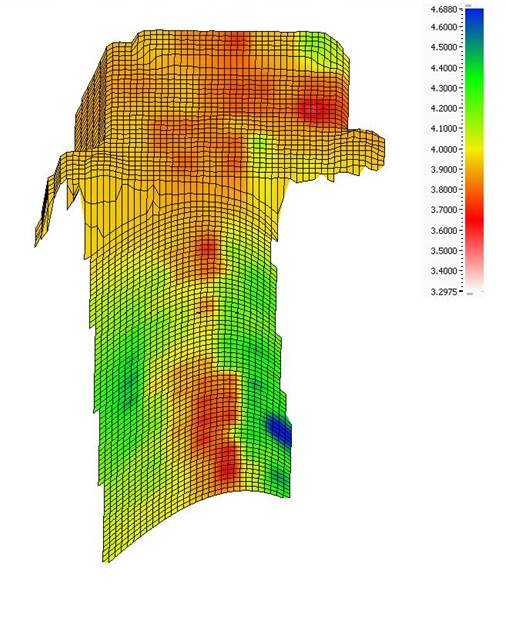

The Omega/Theta system with 3D mapping extension can measure the orientation deviation across the surface of the turbine blade.



*A. Onyszko, J. Sieniawski, W. Bogdanowicz,  H. Berger, "Two methods of studying structure perfection of single crystal nickel-based superalloy ", Solid State Phenomena, 203-204 (2013) 177-180
