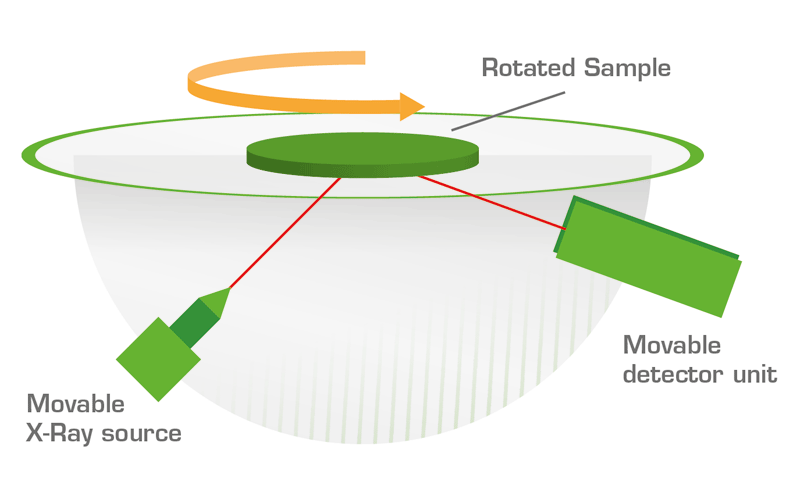

for ultra-fast crystal orientation measurement using the Omega-scan method
The Desktop X-ray Diffractometer for Crystal Orientation Measurement (DDCOM) is an automated tool to determine the orientation of various crystals using the Omega-scan method.
200 times faster than Theta-scan method
Automatic evaluation of the complete lattice orientation in 3D
Determination of entire crystal orientation within 5 seconds
Easily movable and lightweight desktop design
Convenient sample handling and easy to operate
Low energy consumption and operating costs due to air cooled X-ray tube (no water cooling required)
For standard research and industrial workflows
Azimuthal setting and marking of crystal orientation
Preprogrammed cubic crystal parameters
State-of-the-art and convenient software
High precision, i.e up to (1/100)°
Complete lattice orientation of single crystals
Suitable for a unique variety of materials in a large range of size and weight, such as: Wafers from 2-12” and Ingots up to 20kg
Determination of the complete lattice orientation of single crystals
Ultra-fast crystal orientation measurement using the Omega-scan method
Determination of the arbitrary unknown orientation of cubic crystals
Designed especially for azimuthal setting and marking of lattice directions
Air cooled X-ray tube, no water cooling required
Appropriate for research and production quality control
Cubic / arbitrary unknown orientation: Si, Ge, GaAs, GaP, InP
Cubic / special orientation: Ag, Au, Ni, Pt, GaSb, InAs, InSb, AlSb, ZnTe, CdTe, SiC3C, PbS, PbTe, SnTe, MgO, LiF, MgAl2O4, SrTiO3, LaTiO3
Tetragonal: MgF2, TiO2, SrLaAlO4
Hexagonal / Trigonal: SiC 2H, 4H, 6H, 15R, GaN, ZnO, LiNbO3, SiO2 (quartz), Al2O3 (sapphire), GaPO4, La3Ga5SiO14
Orthorhombic: Mg2SiO4, NdGaO3
Further materials according to the customers' demands
Device for mapping of wafers (maximum diameter 225 mm)
Device for automatic loading from cassettes

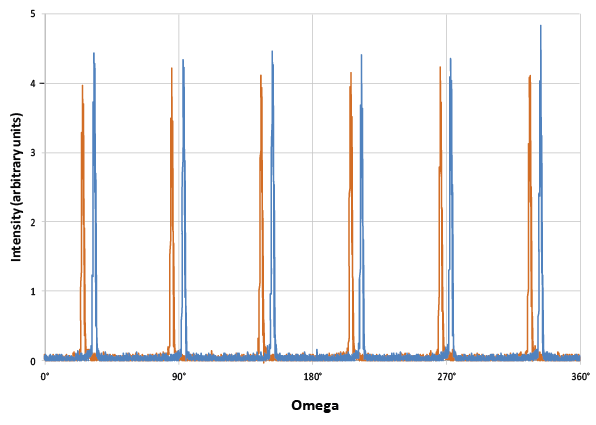

Requiring a convenient and fast XRD method for crystal orientation measurements, the industry is the primary application field for the Omega Scan.

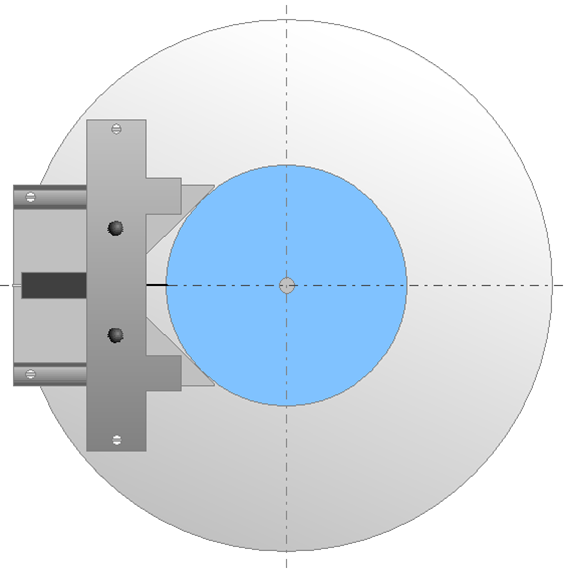

In orientation measurements on large samples, the alingnment of the specimen within the instrument preselects a certain orientation. With respect to the sample main axis, we can define in-plane and out-of-plane components of the crystal orientation. The Omega Scan is capable of determining all...
Our diffractometers are designed for large and heavy single crystals. In particular industrial applications are in the focus of our designs.
In most cases the crystal orientation measurement is a precondition for other processing or measurement steps. The details and peciliarities of each method are not of interest for the most users; they want a reliable result to decide how to go on with their work. Thus having a clear interface and...
