Features & Benefits
Probe
use of a selected gamma ionization chamber suitable for its gamma sensitivity for the measurement of gamma dose rate and dose
10 decades measuring range for the gamma dose rate
stainless steel housing for the gamma ionization chamber, suitable for an underwater use down to 40 m depth
pluggable waterproof cable connection on the stainless-steel housing, mono-cable connection between stainless steel housing and cable drum
possible use of ionization chambers with different gamma sensitivities for the shift of the 10-decades measuring range
State-of-the-art electronics
in operation proven SMC 2100 measuring technique with current-to-frequency converter, integrated in the SmartRAY2 housing
SmartRAY2 with serial interface RS485 for a PC connection

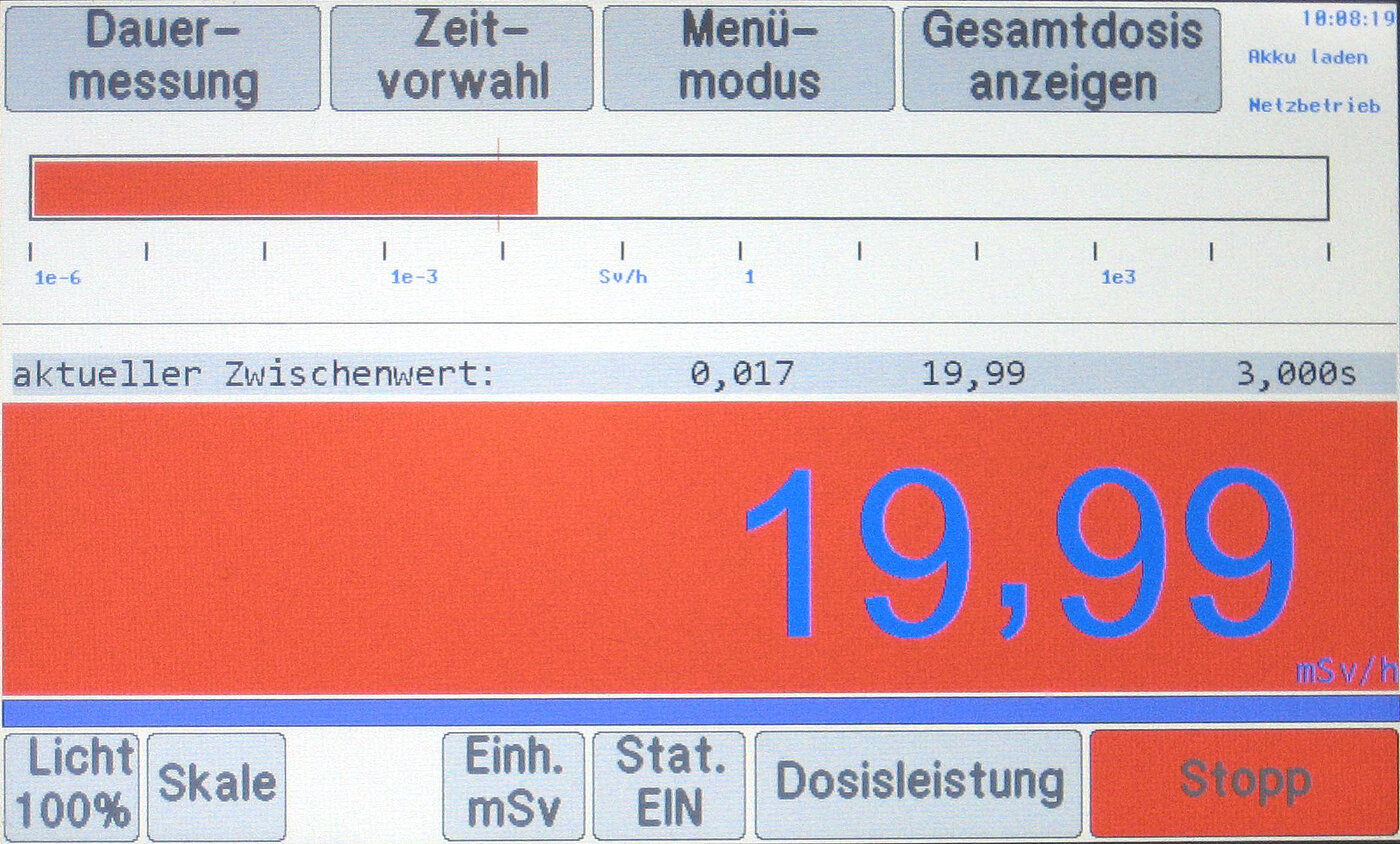

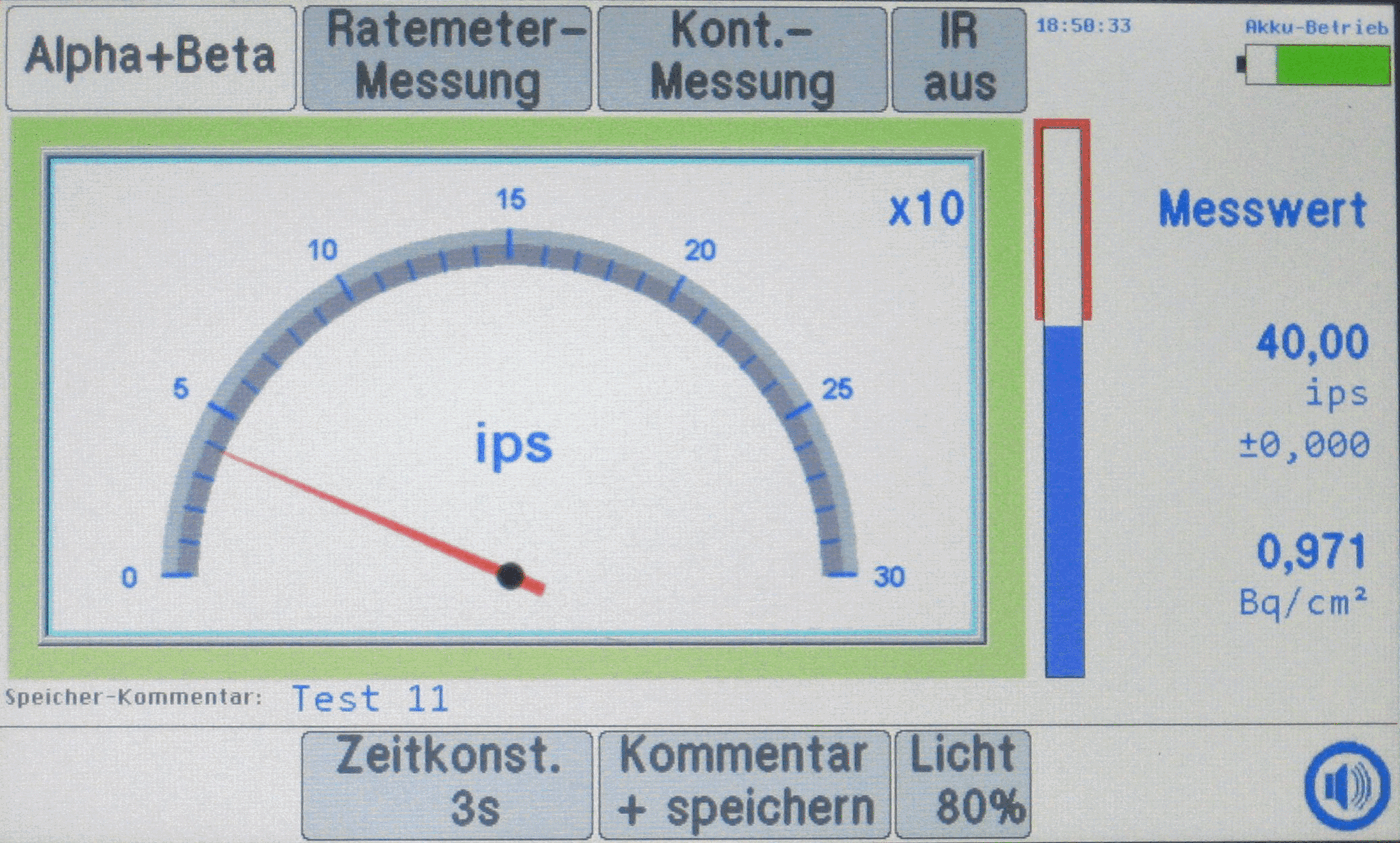

7“ color display with touch functions, resolution 800x480 pixels integrated in the SmartRAY2 housing
storage of the measured values on MicroSD card
readout of the measured values via USB connection
connections for relays, signal lights and external start signal
output of the measured value as analog 0-20mA current signal
mains or battery pack operation, accumulator charging at mains operation, energy management for battery pack control

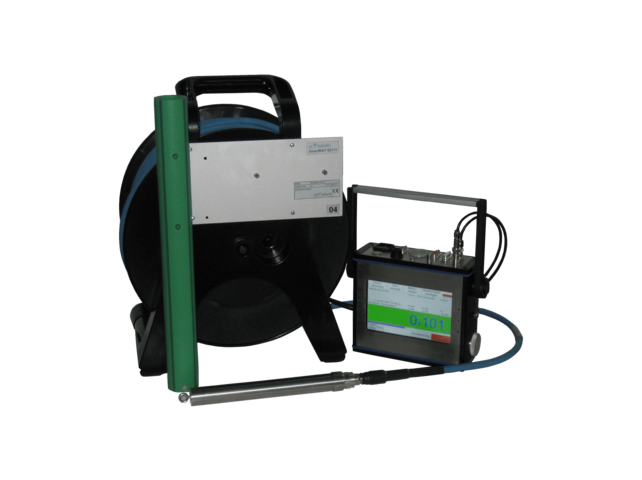

cable drum for probe connection on long cables up to 60 m
