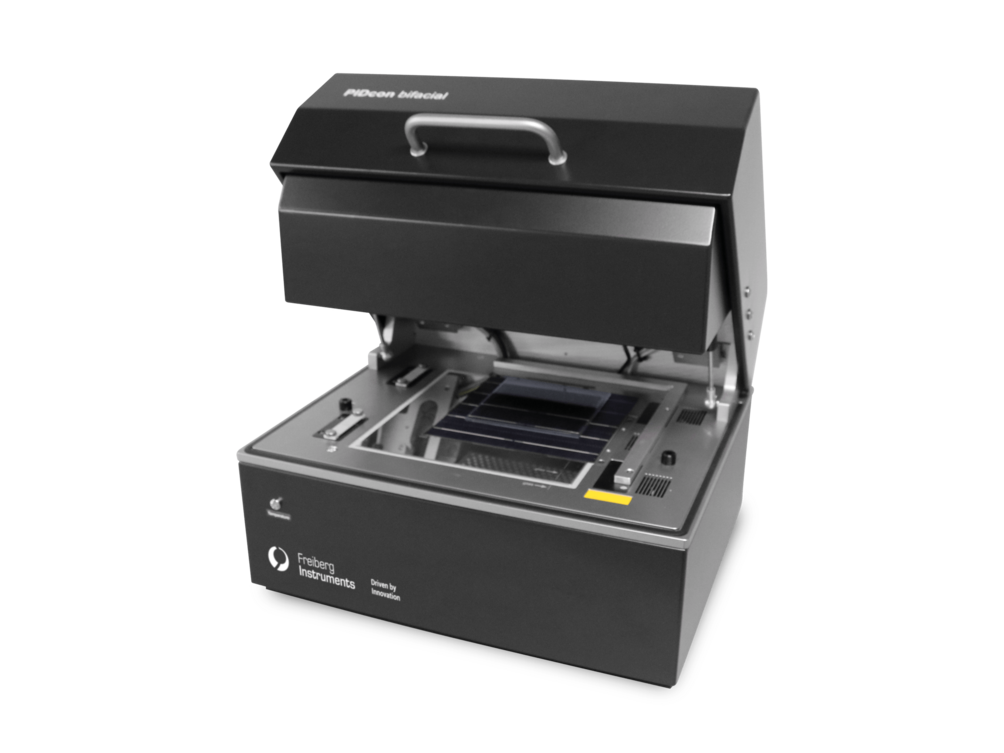

Benchtop PID tester for c-Si solar cells and mini-modules
PID detection at cell level
Research, Production & Quality Control of PERC, AL-BSF, PERC+, bifacial PERC, PERT, PERL and IBC solar cells
No climate chamber necessary
Features & Benefits
Measurements of cells
Test duration: 4 hours (typical)
Voltage: ± 1.5 kV
Module vs. Cell level PID test
Applications
With our PIDcon bifacial testing device, module manufacturers can perform reliable quick tests of solar cells and encapsulation materials during production.
Dr. Christian Hagendorf
Key Account Manager
Specifications
| Type | Stress | Recovery |
| PID-s front | 85 °C, +1.5 kV | 85 °C, -1.5 kV |
| PID-p rear | 85 °C, +1.5 kV, without illumination | 85 °C, dark storage or illumination |
| PID-c rear | 85 °C, +1.5 kV, with illumination | Not possible |
| Lamination | 150 °C, 20 min |
| Sample size | up to 210 x 210 mm |
| Suitable for | For PERC, AL-BSF, IBC, PERC+, bifacial PERC p- and n-type |
| Measurement of | Measurement of: Rparallel, leakage current, IV curve under illumination |
