Rethink your ingot grinding preparation: automated, precise, fast.

  • Rapid determination of crystal orientation

  • Optical geometry inspection with integrated confocal sensor

  • Accurate and fully automated gluing and end piece attachment

Features & Benefits

70–300 mm

Ingot size

0.005°

On-axis precision

Flexible

Loading and communication options

Cylinder
Calculation

with hybrid metrology

Cylinder
Calculation

with hybrid metrology


  • Highest precision with high-speed measurement: < 5 secs/sample

  • Typical standard deviation tilt (example: Si 100):   < 0.003 °, minimum < 0.001 °

  • Automatic ingot alignment

  • Automatic positioning of glue pieces

  • Optical determination of geometric features (flat/notch position) of raw and/or grinded ingots

  • Automatic marking of ingots

  • Easy integration into process line (manual or robotic loading)

  • Data Matrix Code (DMC) reader

  • MES interface; SECS/GEM or similar

  • up to 300 mm diamter and up to 520 mm lenght ingots



Discover the Key Advantages in 60 Seconds

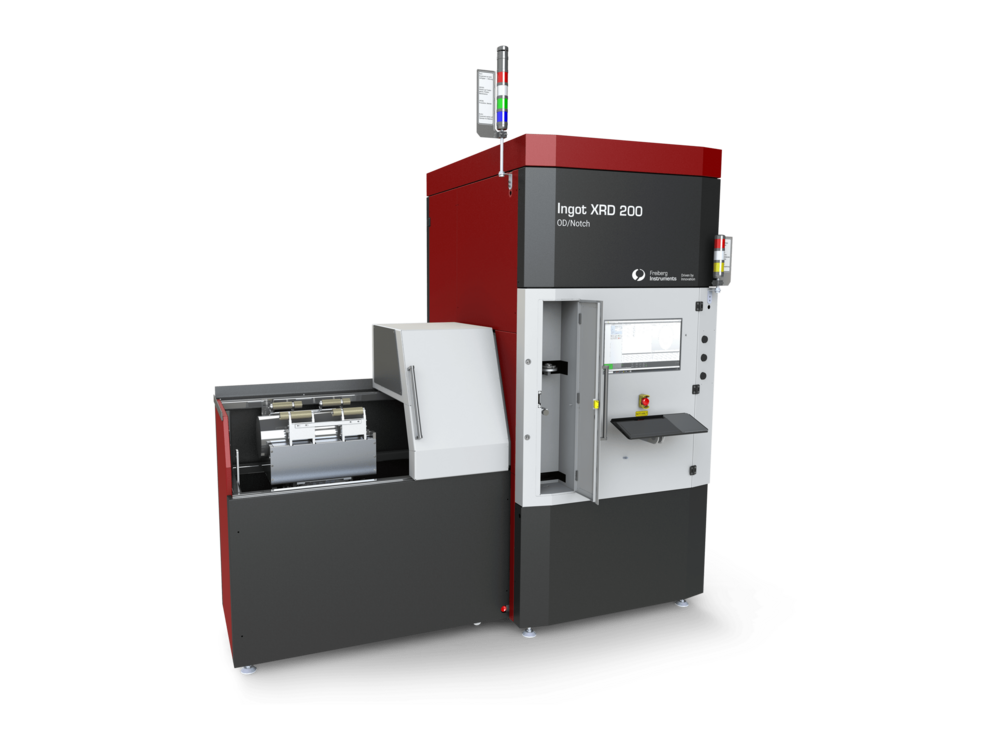

Ingot XRD 200 for 200 mm Ingots

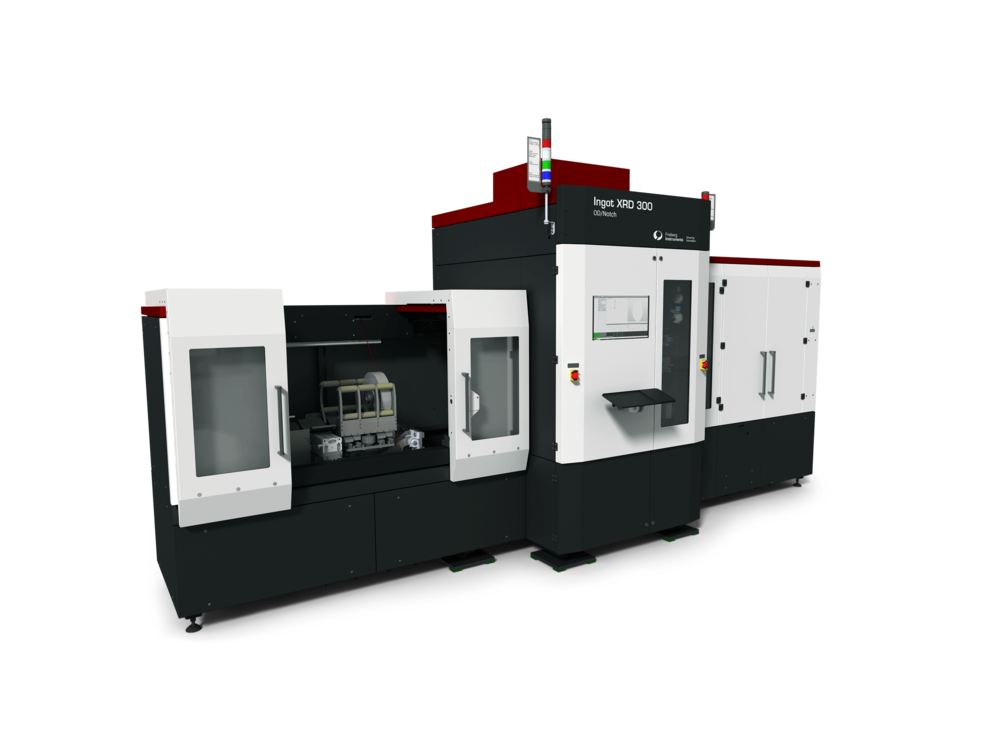

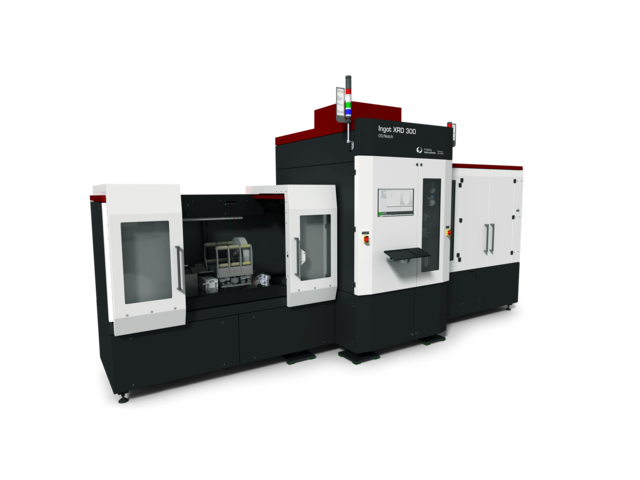

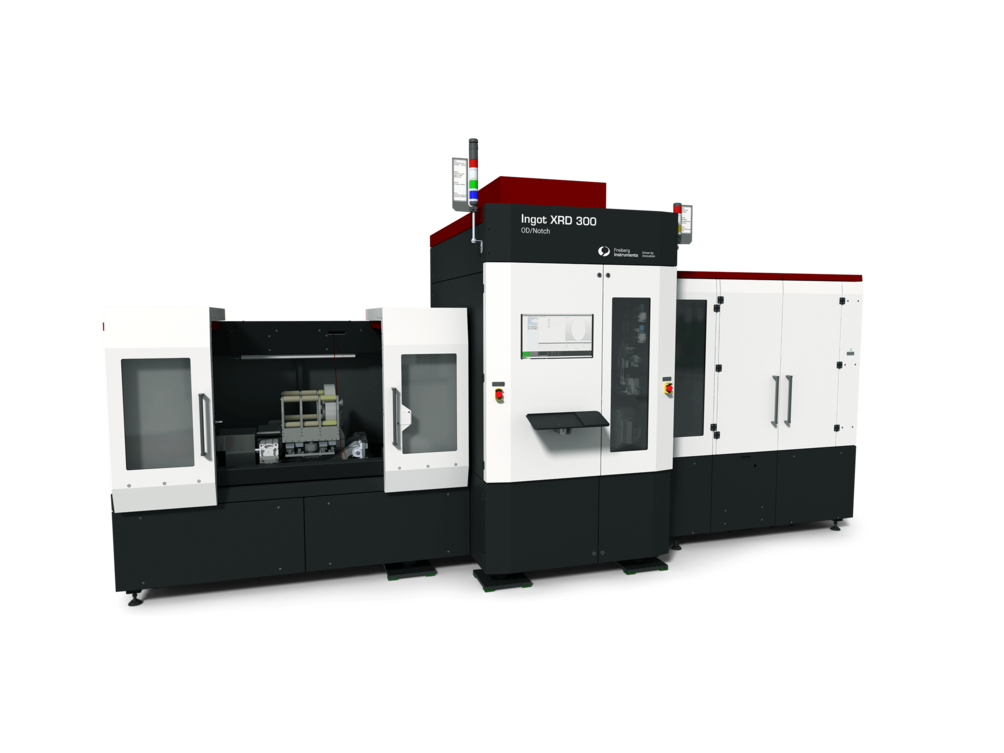

Ingot XRD 300 for 300 mm Ingots

Interested? Our experts are happy to assist you.

Get in touch!

Contact us now!

Specifications

ParameterStandard deviation
Diameter< 6 µm (grinded ingots);  < 30 µm (raw ingots)
Notch/Flat postion< 0.01°
Notch depth< 6 µm
Notch opening angle< 1.5°
X-ray axis Vs. Flat/Notch position< 0.02°
Ingot length> 0.1 mm
