Features & Benefits

  • Sensitivity: μV sensitivity and more than 7 orders of magnitude signal height resolution

  • Measurement speed: < 5 minutes per point for a 150 mm wafer with 1 mm resolution

  • Time resolution: 10 ns up to 100 ms

  • Optical head: laser driven light source with adjustable intensity and wavelength output between 200 and 3000 nm light. Spectral width < 10 nm.

  • Reliability: Bench top instrument with build in monochromator for high reliability and uptime > 99%

Customizable Mapping System for R&D Needs

Flexible Mapping Tool for R&D

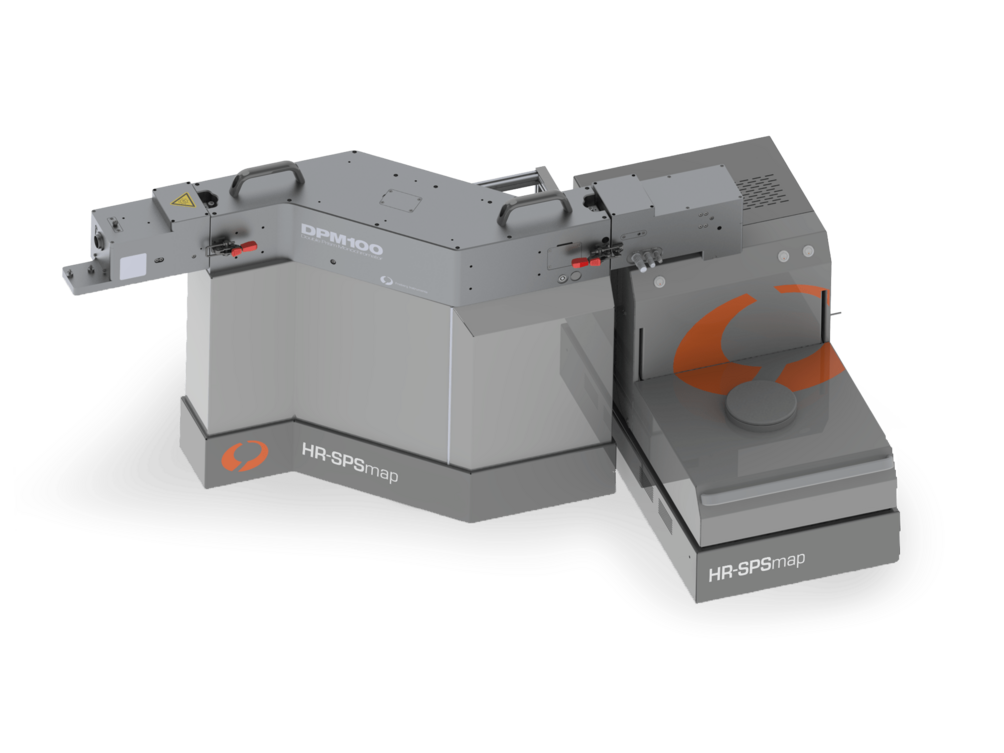

The HR-SPSmap product with a variable energy excitation source is built on the same robust foundation as the fixed-excitation HR-SPSmap system. This compact, benchtop, contactless electrical characterization tool is designed for offline production control and research and development applications. It provides precise surface photovoltage (SPV) measurements across a wide injection range, supporting both steady-state and short-pulse excitation. Additionally, it offers continuous wavelength sweeps for true spectroscopy measurements, enabling reliable characterization of any photoactive sample.

Versatile and Automated Adaptability

The HR-SPSmap system is engineered for flexibility and efficiency. Automated sample recognition and parameter configuration allow seamless adaptation to a broad range of samples, including epitaxial layers and wafers processed at various stages, from raw material to fully finished devices.

Whether for R&D innovation or stringent production monitoring, the HR-SPSmap with variable energy excitation delivers unmatched precision and versatility, setting a new standard in electrical characterization solutions.

Applications


Interested? Our experts are happy to assist you.

Get in touch!

Contact us now!

Technical specifications

sample sizepowder samples and up to 200 mm diameter
excitationlaser driven light source
materialany photoactive material (contact us for consultation on your material)
measureabletime-resolved and phase modulated surface photovoltage measurements
dimensions680 x 680 x 680 mm, weight: app. 100 kg
power100 - 250V, 50/60 Hz, 5 A

Accessories & Options

Our devices offer versatile configuration options to meet specific requirements effectively. Each model can be customized to ensure maximum flexibility and efficiency.

Contact for more information

  • Pulse width and height modulation

  • Integrated heating stage (20–250 °C)

  • Spot size variation

  • Bias light

  • Resistivity measurement (wafers)

  • Reference wafer (Si)
