Automate your Quartz bar orientation and glueing process.

  • Workflow aligned automation

  • Integrated glueing and orientation measurement

  • 40 years of Quartz orientation experience

Materials

The Quartz Bar XRD enables high-throughput and high-precision sawing preparation

Quartz and more

Features & Benefits

±0.5°(AT&TF)

Alignment precision

Automated
gluing

On Adapter Plate

Bar Uptake

Fully automated

10s

Measurement speed for high throughput

10s

Measurement speed for high throughput

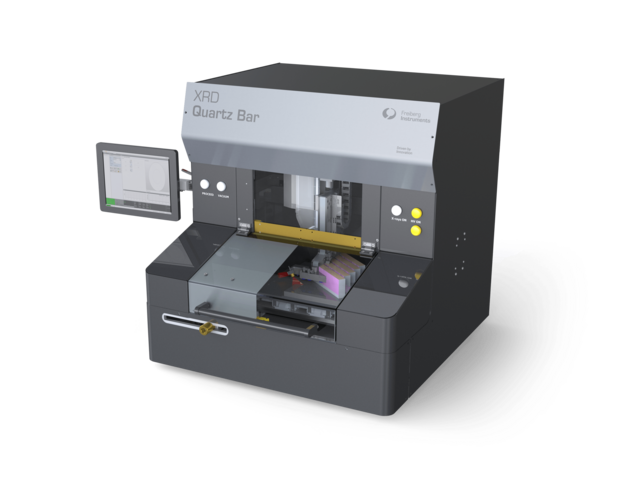

Fully automated quartz bar aligning machine

Samples: quartz bars

Handling:

  • Fully automated uptake and alignment of quartz bars

  • Automated gluing on adapter plate

Alignment precision: ± 0.5° (AT & TF)

Interested? Our experts are happy to assist you.

Get in touch!

Contact us now!

Accessories & Options

Details

  • MES interface for Industry

  • Mapping (wafers)

  • Stereographical projection and more

  • X-ray tube: 1.5 kW, Cu anode

  • Power supply: 100 - 230 V,

  • 16 A, single phase
