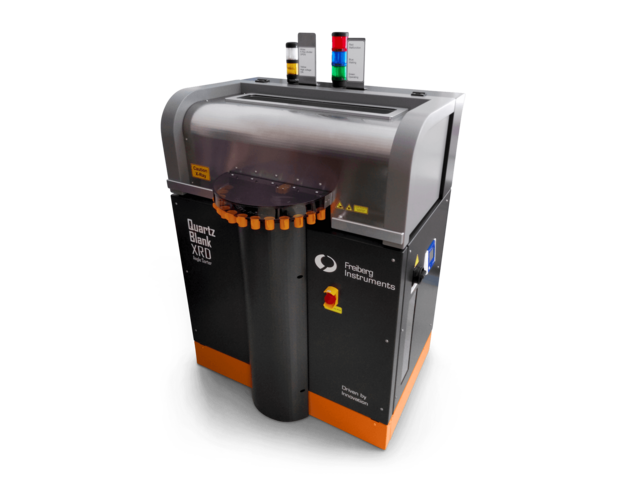

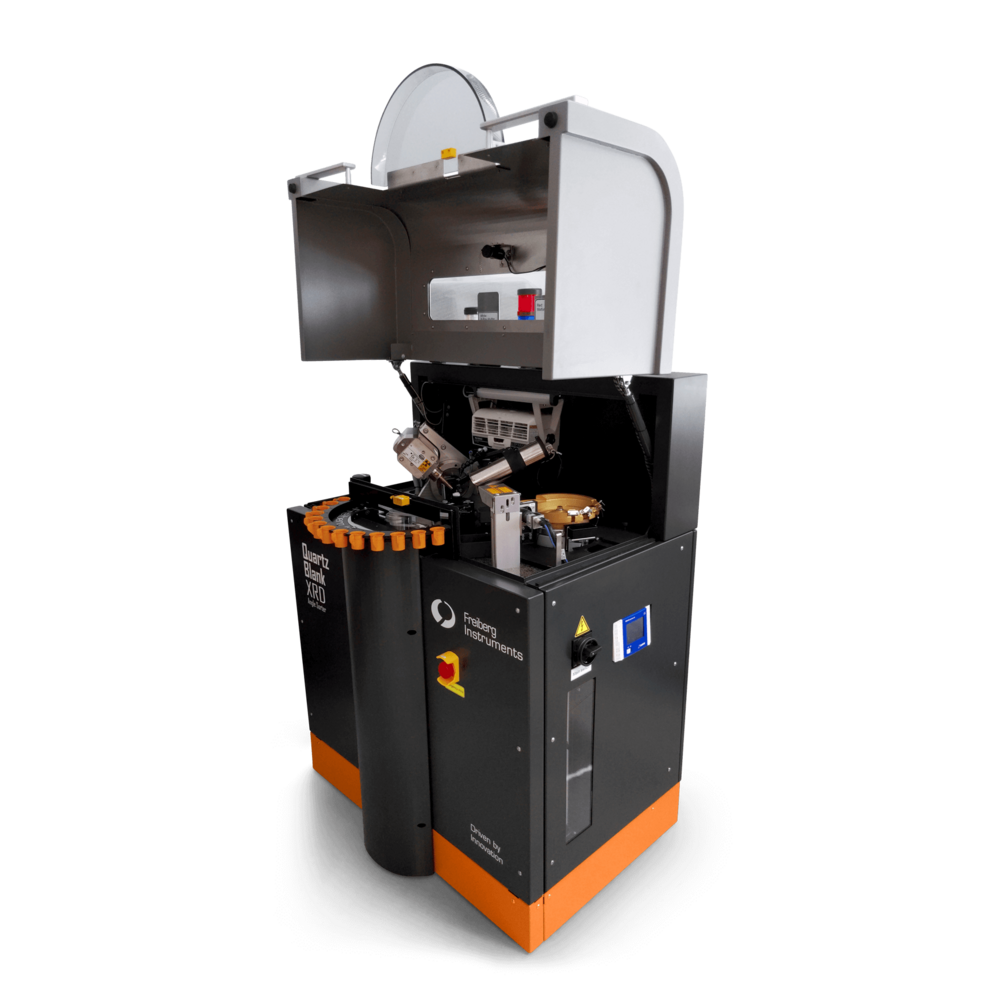

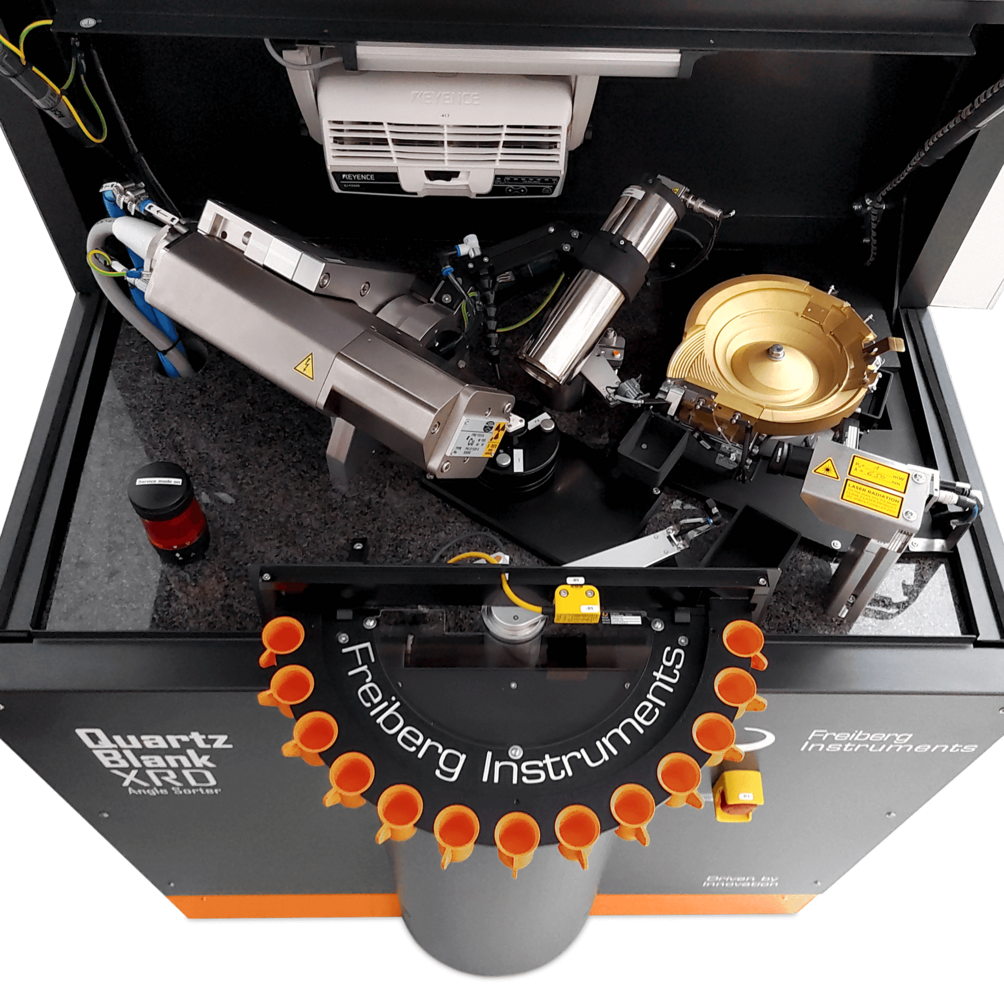

Quartz blank orientation measurement and sorting at high speed

  • Automated sorting options for round, rectangular and square samples

  • Orientation binning down to ±7.5 arcsec

  • Up to 700 blanks/h throughput at standard sorting accuracy

Materials

The Quartz Blank XRD enables high-throughput and high-precision orientation binning of quartz blanks

Quartz and more

Features & Benefits

± 7.5 arcsec

Minimum sorting group size

700 blanks/h

At standard sorting accuracy

4–12 mm

Blank dimension

40 years

Quartz Experience

40 years

Quartz Experience

Samples:

  • Available cuts: AC, SC, IT, TF and more

  • Round, rectangular & square

  • 4 x 4 mm up to 20 x 20 mm (manual sample handling)

  • 4 x 4 mm up to 10.0 x 10.0 mm (automation option I)

  • 6.0 x 6.0 mm up to 17.0 x 17.0 mm (automation option II)

  • Thickness: 80 µm up to 1000 µm

  • Other dimensions on demand

Features:

  • Sorting into quality groups: ± 7.5 arcsec (minimum)

  • Throughput: up to 700 blanks/h at standard sorting accuracy
